Kiswel K-7018N
Welding of aluminium-killed steel used at low temperature, LPG tankers and LPG storage tanks etc.
SPESIFIKASI PRODUK
KISWEL
Low Hydrogen
K-7018N Welding Electrode
High-Quality Low-Hydrogen Electrode for Critical Structures
Product Overview
The Kiswel K-7018N is a premium low-hydrogen, iron powder type electrode. Classified under AWS A5.1 E7018-1, it is engineered for critical welding applications requiring superior notch toughness at low temperatures and excellent crack resistance.
Core Specs
- • Polarity: AC / DC (+)
- • Standard: E7018-1
- • Position: All positions (F, HF, H, VU, OH)
Typical Mechanical Properties
Yield Strength
510 MPa
510 MPa
Tensile Strength
590 MPa
590 MPa
Elongation
32%
32%
Impact (-45°C)
75 J
75 J
Welding Parameters
| Size (mm) | Position | Ampere Range (A) |
|---|---|---|
| 2.6 | F, HF | 70 - 100 |
| VU, OH | 60 - 90 | |
| 3.2 | F, HF | 90 - 130 |
| VU, OH | 85 - 120 | |
| 4.0 | F, HF | 150 - 190 |
| VU, OH | 110 - 160 | |
| 5.0 | F, HF | 160 - 220 |
| VU, OH | 130 - 180 | |
| 6.0 | F, HF | 180 - 230 |
Produk Kami
Produk industri berkualitas tinggi untuk pengelasan, otomatisasi robotik, dan solusi manufaktur.

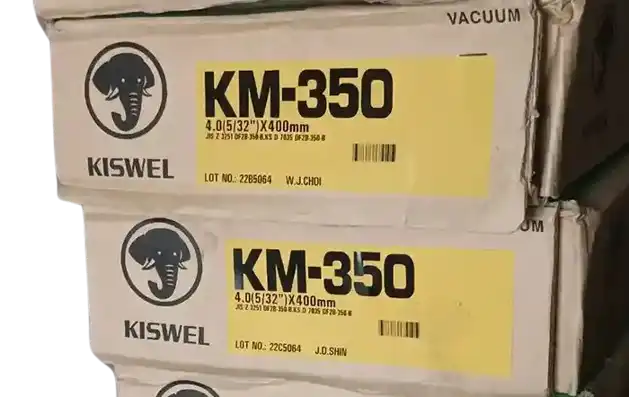

Kiswel KM-350
